Category:
Hinges

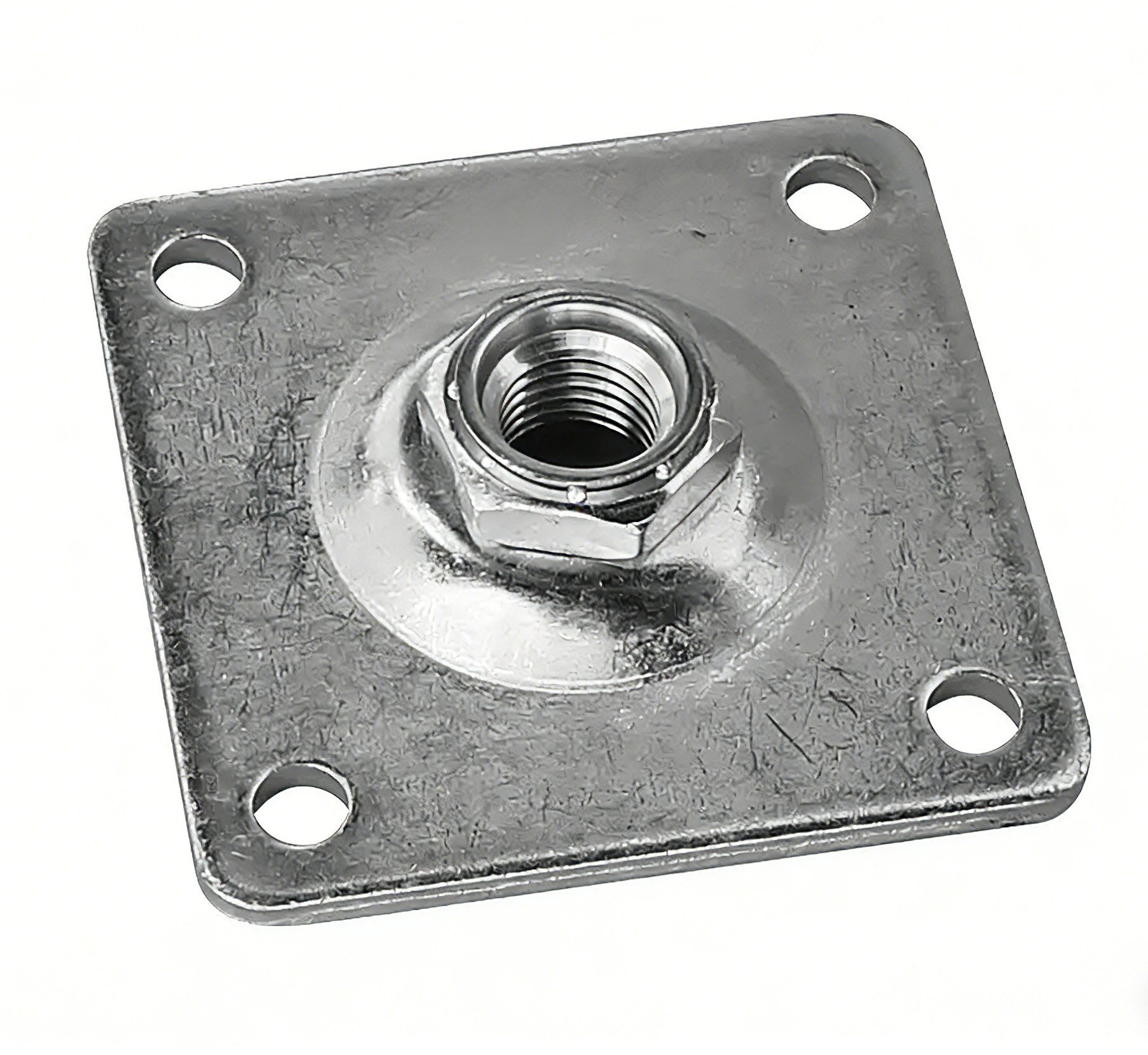

Screw-on plate for adjustable hinge (For DWH003)
Product Code DWHA001
Brand:
小象贾洛
Unit:
件
HS Code:
8302.41
Select Specifications
规格:
Price:
Price on Request
* Login to view your exclusive price
Minimum Order Quantity:
500
Specifications
📝 Detailed Specifications
Material: Steel (galvanized)
Plate size: 80mm, 90mm, 100mm, 120mm
Base thickness: 4mm, 4mm, 5mm, 6mm
Thread diameter: M16, M18, M20, M24
Mounting hole diameter: 10.5mm, 11mm, 11mm, 11mm
Total thickness: 18mm, 20mm, 22mm, 24mm
Plate size: 80mm, 90mm, 100mm, 120mm
Base thickness: 4mm, 4mm, 5mm, 6mm
Thread diameter: M16, M18, M20, M24
Mounting hole diameter: 10.5mm, 11mm, 11mm, 11mm
Total thickness: 18mm, 20mm, 22mm, 24mm
Packaging Information
Per Unit
0.226 kg
0.000000 m³
Weight / Volume
Per Carton
10 pcs
-
2.26 kg
Qty / Size / Gross Weight
20' Container
-
Cartons
≈33m³
40' Container
-
Cartons
≈67m³
40'HQ Container
-
Cartons
≈76m³
Product Description

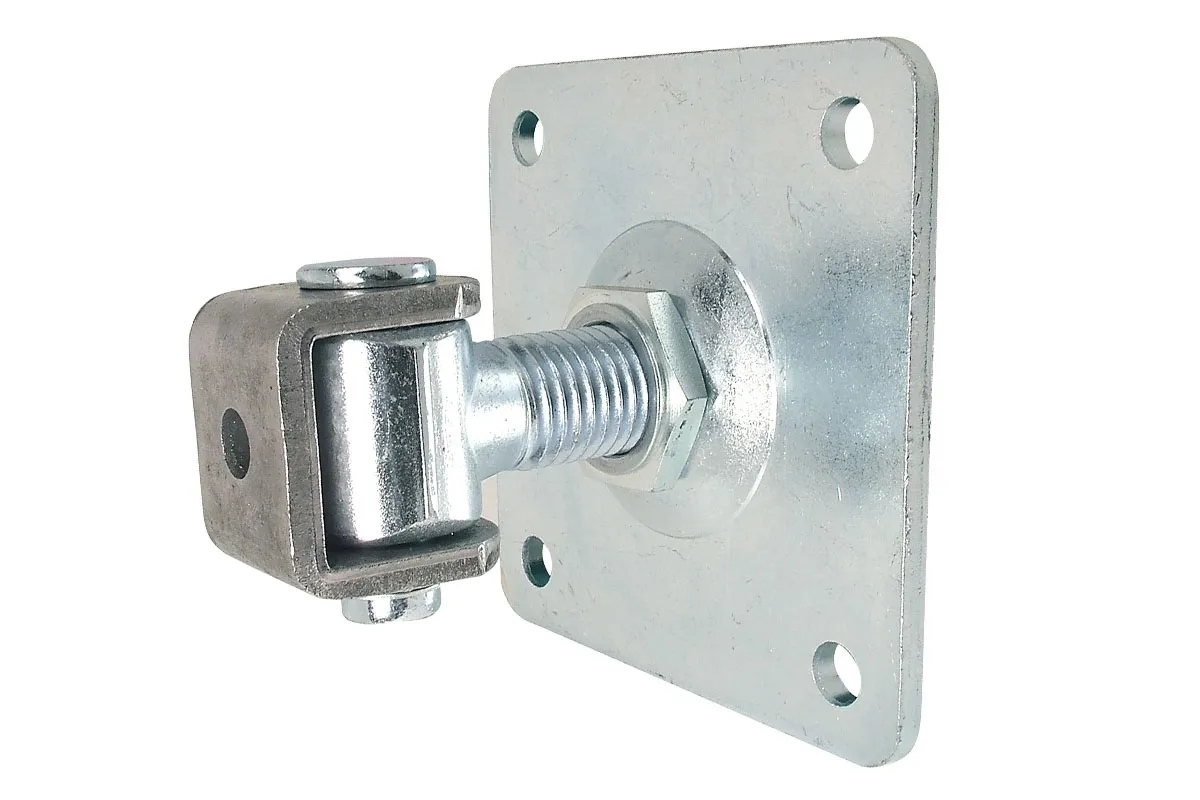

The Plate to Screw for Adjustable Hinge is a high-quality galvanized steel accessory for adjustable hinges, featuring corrosion resistance and durability. It fits metal doors, industrial doors, garage doors, etc., with stable installation, strong load-bearing capacity and easy disassembly for maintenance.
